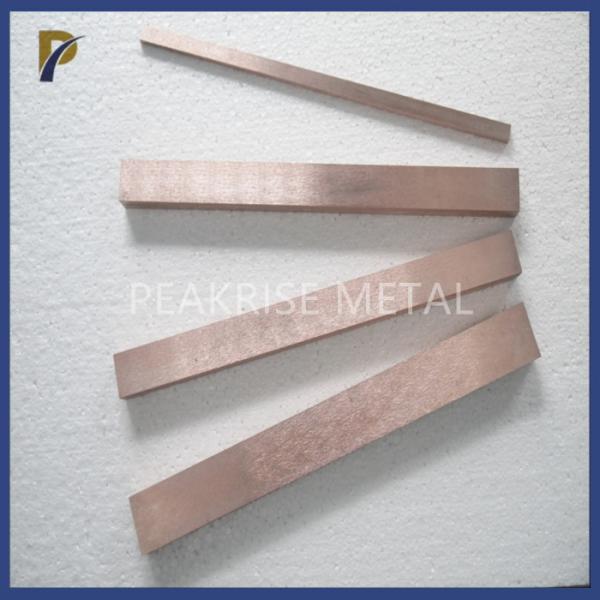

Mo80Cu20 Molybdenum Copper Alloy Sheet
1. Description of Mo80Cu20 Molybdenum Copper Alloy Sheet:
Molybdenum-copper alloy sheet is a composite made of molybdenum and copper. Similar to tungsten-copper, the thermal expansion coefficient of molybdenum-copper alloy can also be tailored by adjusting the structure. Ideal for aerospace applications.
Moreover, the molybdenum-copper alloy sheet has the characteristics of both molybdenum and copper, and has the characteristics of high thermal conductivity, low adjustable thermal expansion coefficient, non-magnetic, low gas content, good vacuum performance, good machinability and special high temperature performance. . Widely used in machinery, electricity, electronics, electric vehicles, metallurgy and other industries.
2. Size and Tolerance of Mo80Cu20 Molybdenum Copper Alloy Sheet:
| Process Method | Thickness | Width | Length | |||
| Size of range | Tolerance | Size of range | Tolerance | Size of range | Tolerance | |
| Powder metallurgy | 10~20mm | ±0.5mm | 50~100mm | ±2mm | 100~200mm | ±5mm |
| Pressure processing | 1~3mm | ±0.2mm | 50~100mm | ±1mm | 100~200mm | ±3mm |
| ≤1mm | ±0.1mm | 50~100mm | ±1mm | 100~200mm | ±3mm | |
3. Chemical content of Mo80Cu20 Molybdenum Copper Alloy Sheet:
| Grade | Alloy content | Impurity element content (max.<) | |||||||||
| Mo | Cu | W | Mg | Ca | Fe | C | N | H | O | Other Impurity Amount | |
| Mo40Cu60 | Remain | 60±2.0 | 0.015 | 0.01 | 0.01 | 0.01 | 0.015 | 0.01 | 0.01 | 0.01 | 0.01 |
| Mo45Cu55 | Remain | 55±2.0 | |||||||||
| Mo50Cu50 | Remain | 50±2.0 | |||||||||
| Mo55Cu45 | Remain | 45±2.0 | |||||||||
| Mo60Cu40 | Remain | 40±2.0 | |||||||||
| Mo65Cu35 | Remain | 35±2.0 | |||||||||
| Mo70Cu30 | Remain | 30±2.0 | |||||||||
| Mo75Cu25 | Remain | 25±2.0 | |||||||||
| Mo80Cu20 | Remain | 20±2.0 | |||||||||
| Mo85Cu15 | Remain | 15±2.0 | |||||||||
| Mo90Cu10 | Remain | 10±2.0 | |||||||||
4. Density Allowed of Mo80Cu20 Molybdenum Copper Alloy Sheet:
| Grade | Density g/cm3 | |
| Annealed(M) | Infiltration state(S) | |
| Mo40Cu60 | 9.2~9.45 | 9.1~9.45 |
| Mo45Cu55 | 9.26~9.51 | 9.16~9.51 |
| Mo50Cu50 | 9.31~9.57 | 9.22~9.57 |
| Mo55Cu45 | 9.38~9.64 | 9.28~9.64 |
| Mo60Cu40 | 9.44~9.70 | 9.34~9.70 |
| Mo65Cu35 | 9.5~9.76 | 9.4~9.76 |
| Mo70Cu30 | 9.56~9.83 | 9.46~9.83 |
| Mo75Cu25 | 9.63~9.9 | 9.53~9.9 |
| Mo80Cu20 | 9.69~9.96 | 9.59~9.96 |
| Mo85Cu15 | 9.76~10.03 | 9.66~10.03 |
| Mo90Cu10 | 9.82~10.1 | 9.72~10.1 |
5. Application of Mo80Cu20 Molybdenum Copper Alloy Sheet:
1). Vacuum Contact.
2). Conductive and heat-dissipating components, which can meet the
requirements of high electrical conductivity, thermal conductivity,
heat resistance, vacuum performance and constant thermal expansion
coefficient of high-power integrated circuits and microwave
devices.
3). As some special requirements of instrumentation components, it
meets its non-magnetic, constant thermal expansion, high elastic
modulus, high electrical and thermal conductivity, etc.
4). It is used for high temperature parts of rockets and missiles
with slightly lower temperature, and can also replace molybdenum as
parts in other equipment.
5). It is used as solid dynamic seal, strengthening of sliding
friction, water-cooled electrode head of high temperature furnace,
and electric processing electrode, etc.
